SPECIFICATIONS

Brand Name: Blueshow

Certification: CE,RoHS

Color Wheel: 14 colors + white

Control Mode: DMX 512, Master-slave, Auto program

Gobo Wheel: 17 gobos + open

Hign-concerned Chemical: None

Installation Method: self-contained

Item Type: Stage Lighting Effect

Light Source: Os-ram Sirius HRI 230W (7R)

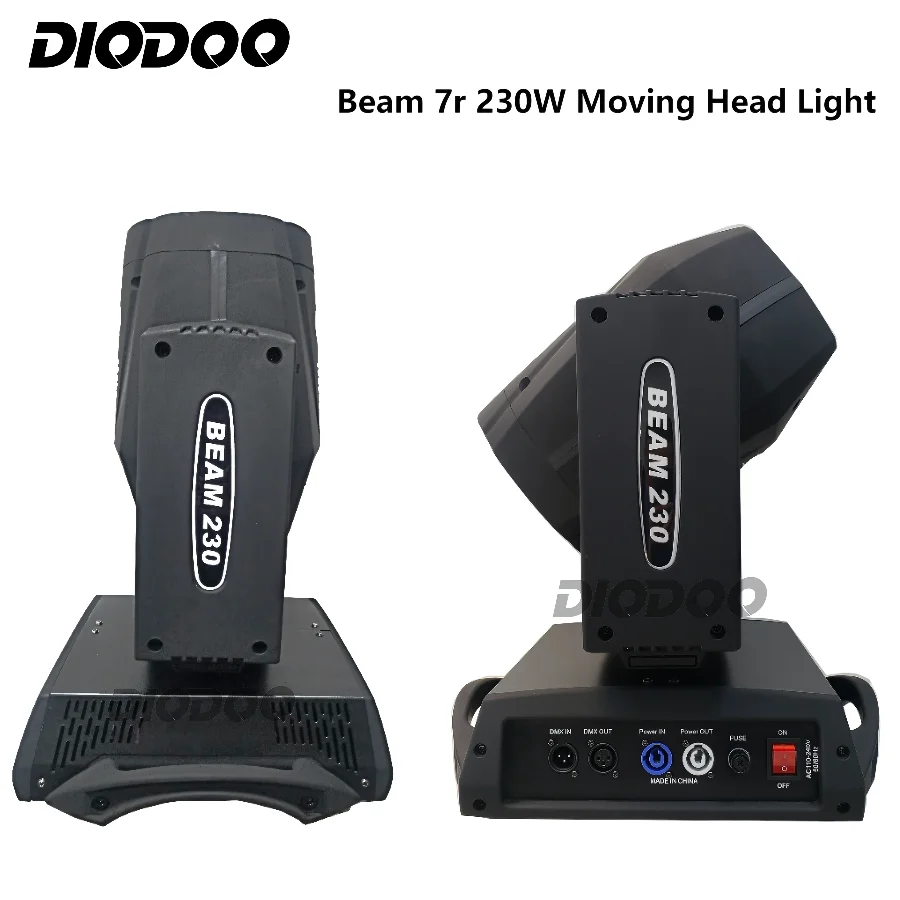

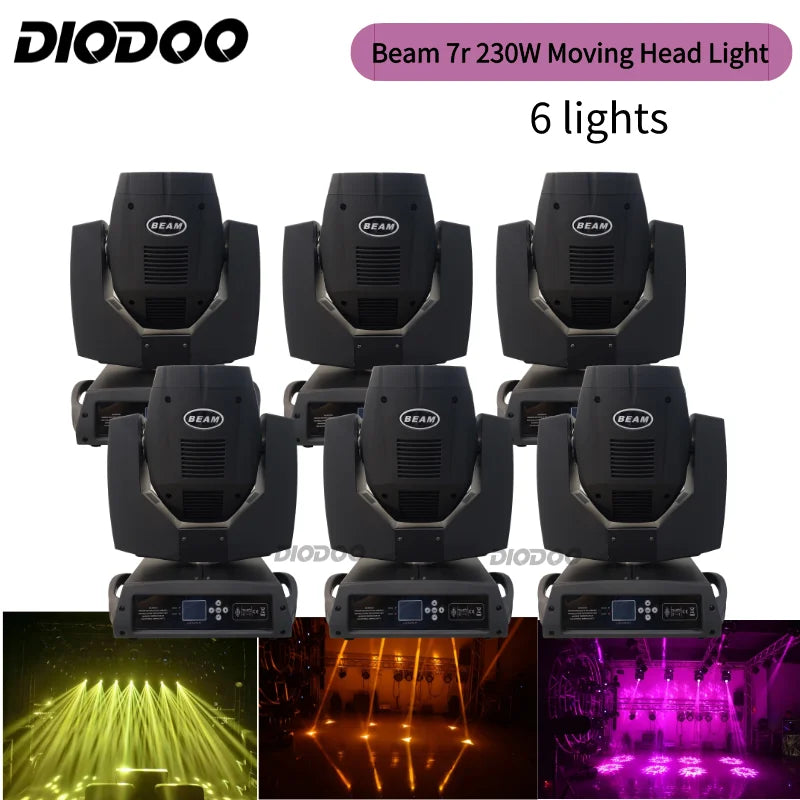

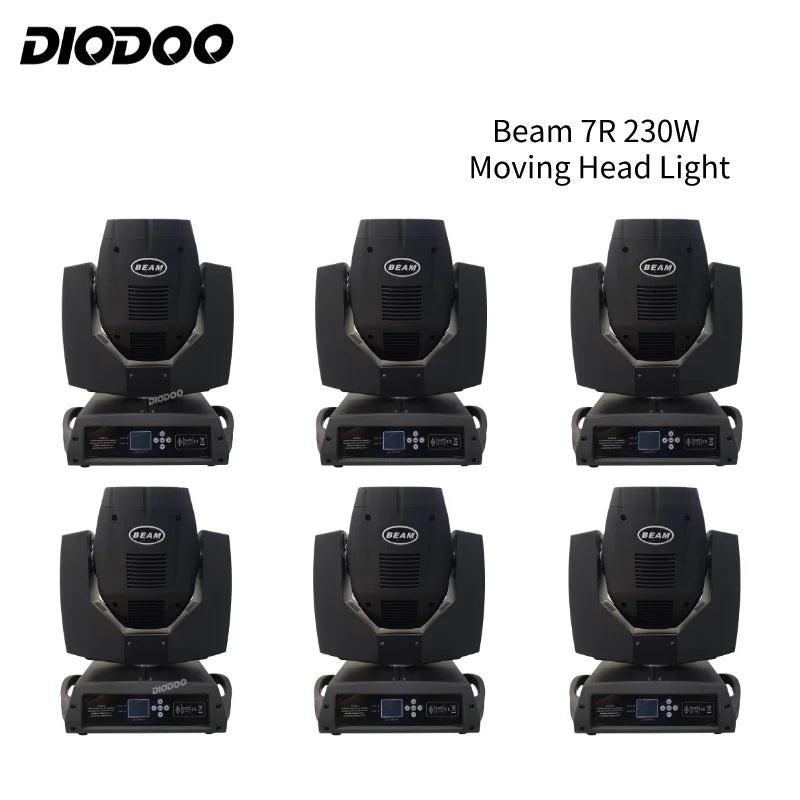

Model Number: Beam 230W 7R Stage Moving Head Light

Occasion: Professional Stage & DJ

Origin: Mainland China

Power Consumption: 450W

Power Supply: AC110-240V, 50/60HZ

Prism: 8+16+24 facet rotating prism

Style: DMX Stage Light

No Tax Lyre Sharpy Beam 230W 7R Moving Head Light For Disco Party DJ Stage Control With DMX512 Prism Beam 7R 230W Stage Lamp

**We have the places of shipment include China and overseas warehouses (Russia, Poland，United States，France).

 **Free shipping usually takes about 40~60 days. Express usually takes about 3~7 days.

 **ForNOT FREE SHIPPING COUNTRIES or METHODS, Please contact us for correct price.

Product description

Total power: 450W

Light bulb: O-SRAM 7R/230W

Color temperature: 8000K

Lamp life: 3000 hours

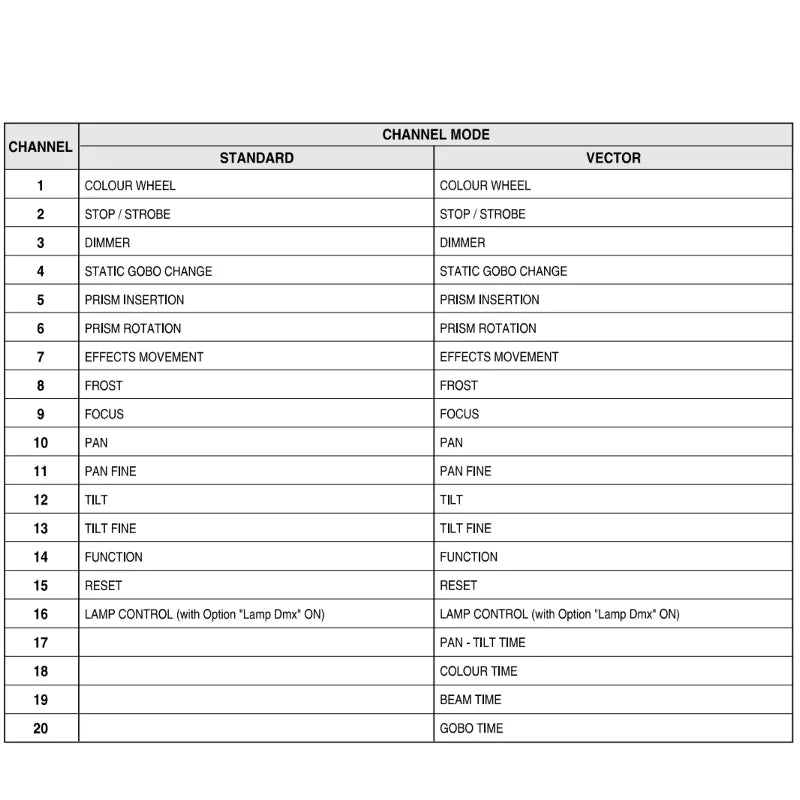

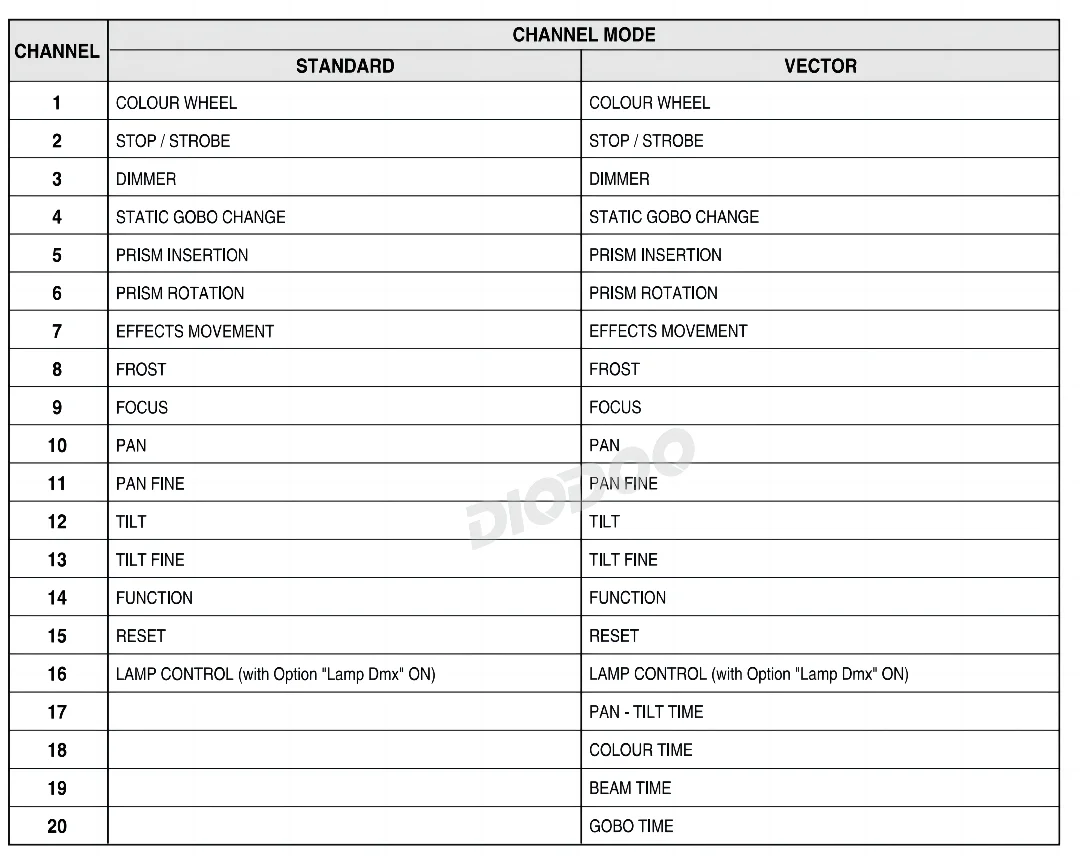

DMX channels: 16/20CH

Zoom: 0 degree -3.8 degrees

Channel control: international standard DMX512 signal, voice control, self walking.

Color: 14 colors + white light, to achieve rainbow, half color, panchromatic, water and so on.

Pattern: 17 patterns + white light, pattern jitter, water and many other effects.

Rotation angle: X-540 degree Y-250 degree.

Maximum rotation speed: horizontal 2.45S, vertical 1.3S

Precision scan: horizontal 0.008 degree, vertical 0.004 degree.

Prism: regular 8+16+24 prism （can customize 8/16/24/32 prism)

N.W: 16kg, G.W: 17kg

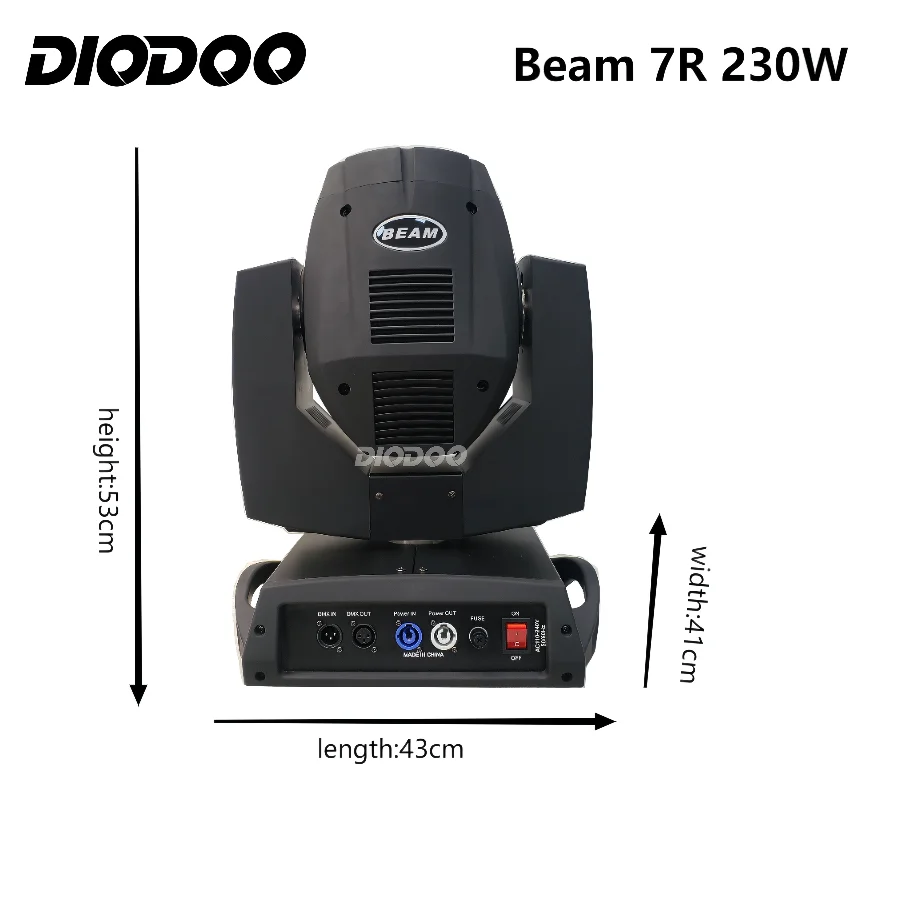

Light size:42x41x53cm

Carton package size:430*420*540mm

Feature

Two phase motor

Bearing fans, favorable cooling system

High speed shake effect

14 interchangeable colors, with dichroic colors

17 static gobos, with gobo shake and accurate position

Function

Beam Angle: 3.8°

DMX Channel: 16 CH

Control Mode: DMX 512, Master-slave, Auto program

Smooth dimmer from 0% - 100%

Linear frost

Electronic focus

Mechanical shutter and adjustable speed strobe effect

English & Chinese LCD display

Pan: 540°+16bit fine

Tilt: 270°+16bit fine

1. 3 inch large screen touch, easy to view and operate.

2. The shell adopts PE material rubber paint, beautiful, not easy to dirty.

3. Full power 400W power, power protection, power supply stability is not easy broken.

4. The super light lens, the same light source transmittance increased by 10%, the beam effect is strong.

5. Bulb over temperature protection to avoid burning or explosion caused by excessive temperature of the bulb caused by damage to the fan

6. The design of the base quick lock is very convenient for users to install upside down.

7. All of our headlights are equipped with power lines, signal lines, hooks and safety ropes for customers to use when they get the lights.

8.The 8/16/24/32 prism can be selective, 3/6 rows of mirrors optional.

9. Powercorn In/Out design, convenient for multiple series installation.

10. The lightweight design of the whole sheet metal aluminum alloy is more than 70%, which is convenient for handling and installation.

11. The power lighting device has independent cooling fan, and the whole lamp temperature is effectively controlled.

12. DMX control protocol, dual DMX channel selection, Sharpy channel mode selection, strong compatibility.

13. All motor wires are made of Teflon wire material, which is resistant to bending and abrasion.

14.The motherboard is mounted on the arm to avoid a large number of concentrated elements on the base, resulting in high temperature of the base, or signal interference problems.

15. All motor screws are fixed with screw glue. Avoid failure caused by screw loosening

Due to different production batches, there may be slight differences between the real object and the picture. Due to manual measurement, there will be some errors in product dimensions. If you mind, please do not place orders.

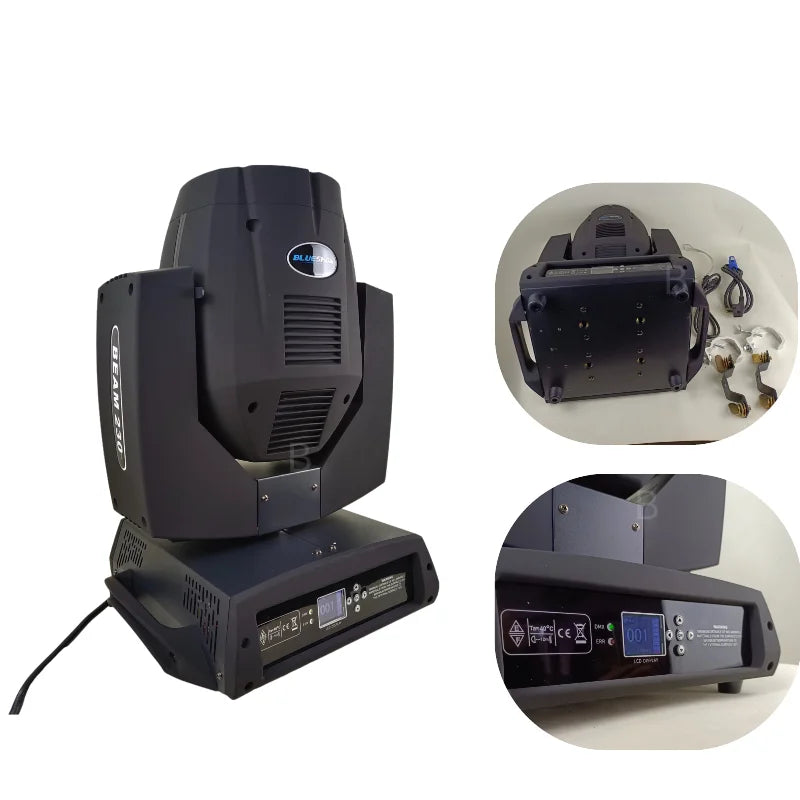

1Light  Package includes

*1x Beam moving head light

*1x 1.2M Power cable

*1x 1M DMX cable

*1x Safety cable

*2x Light hooks

*2x Clamp locks

*1x Manual

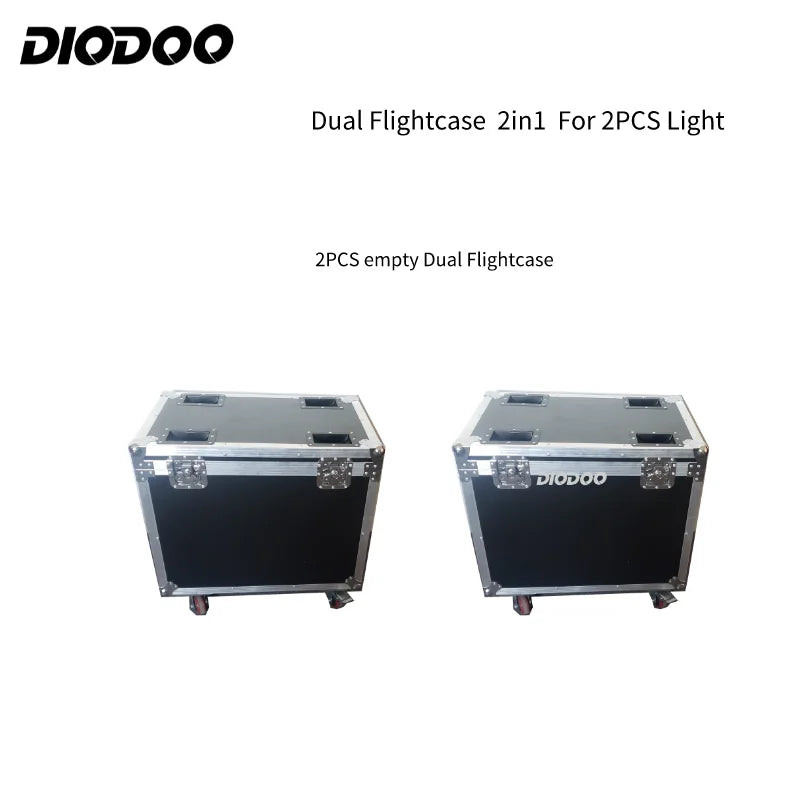

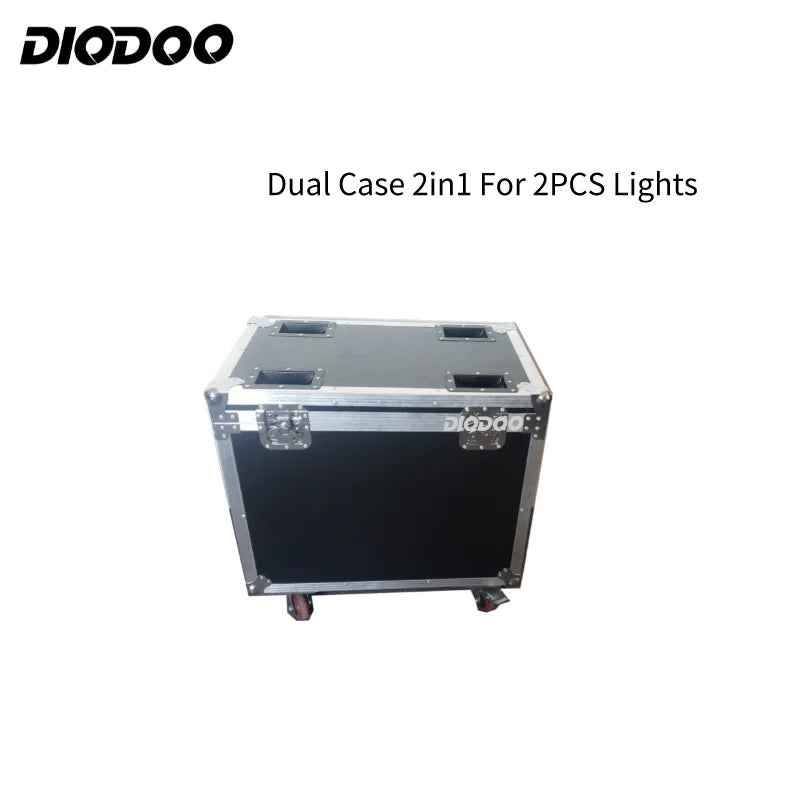

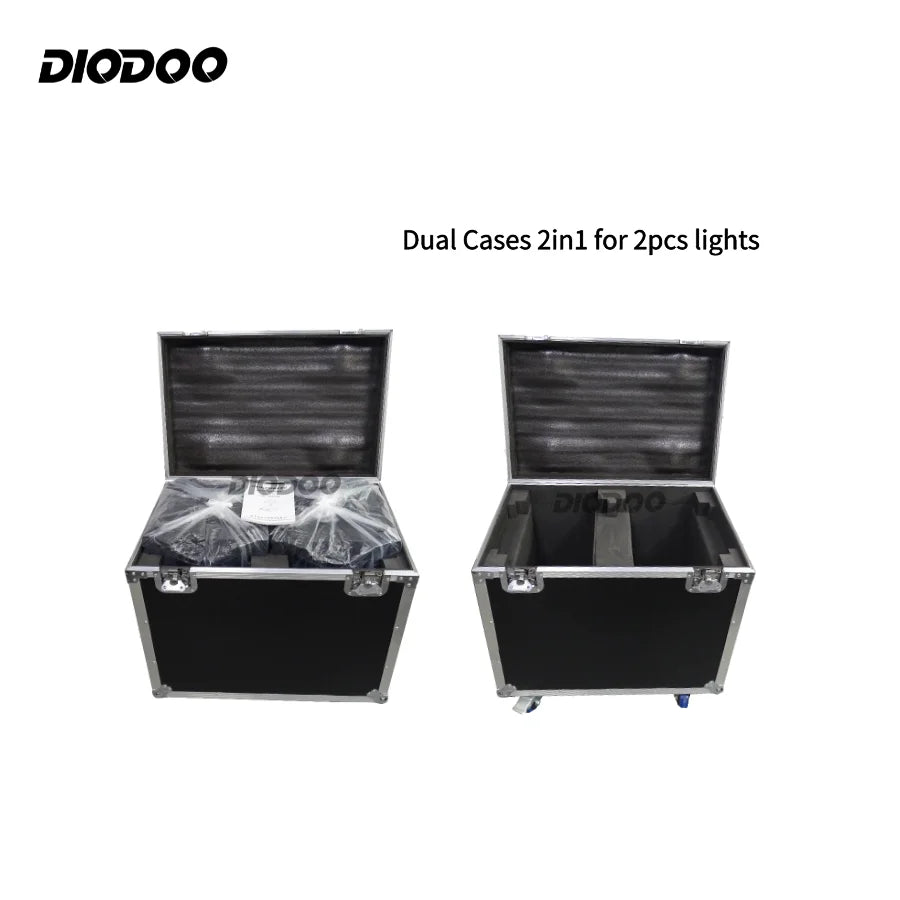

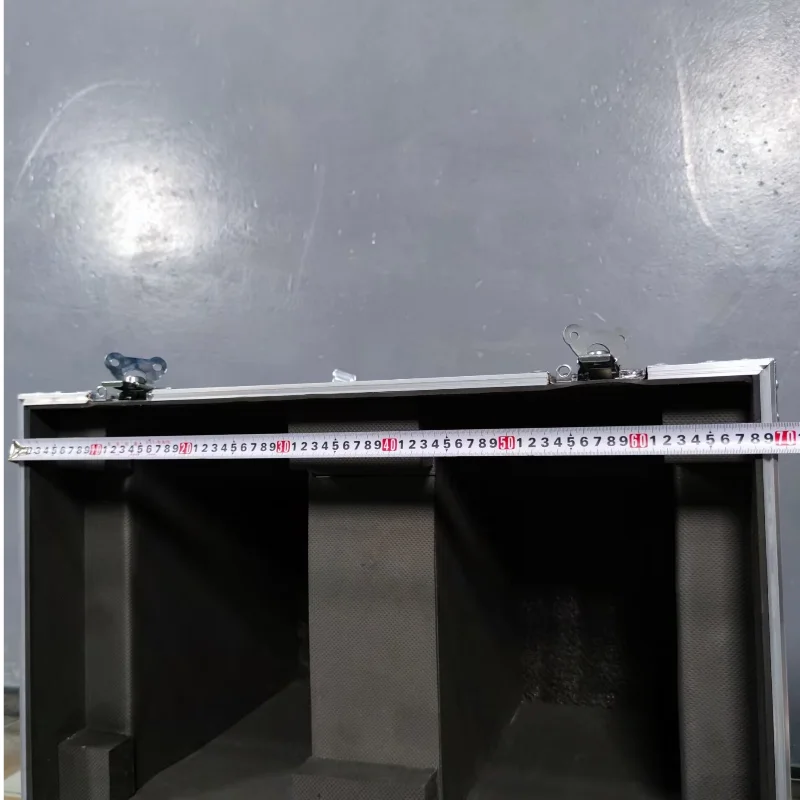

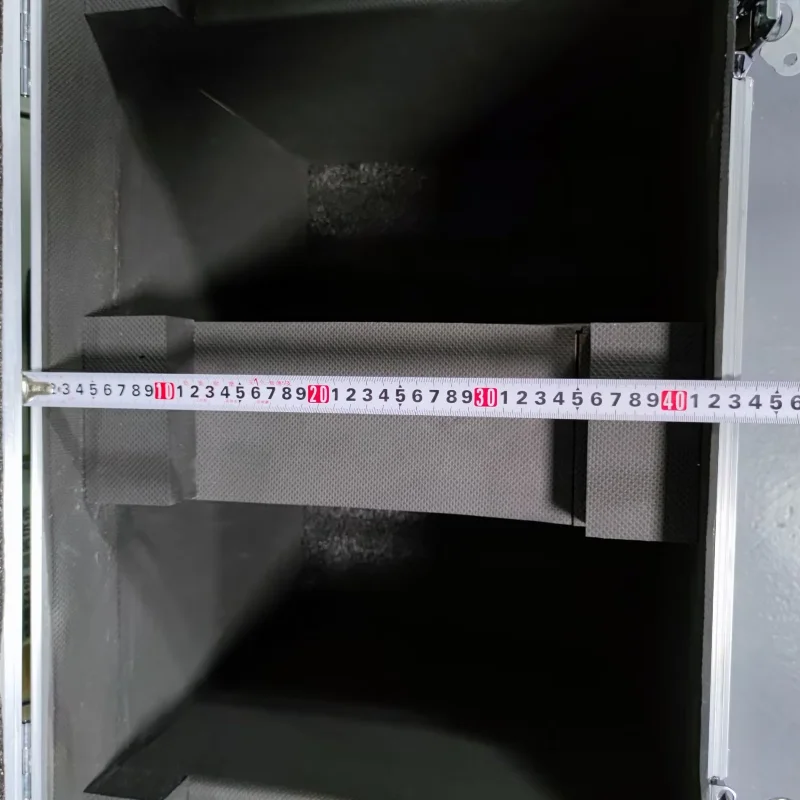

 Flightcase  optional
