SPECIFICATIONS

Brand Name: U'King

Certification: CE,FCC,RoHS

Channel: 16/20CH

Color plate: 13 colors + 1 white light

Fixed gobo disk: 14 patterns + 1 white light

Hign-concerned Chemical: None

Installation Method: self-contained

Is Batteries Included: No

Is Bulbs Included: Yes

Item Type: Stage Lighting Effect

Luminous Flux: 2000-82000

Model Number: 230W LED Moving Head Light

Occasion: Professional Stage & DJ

Origin: Mainland China

Power (W): 230W

Power Source: AC

Prism: 24 prism

Style: DMX Stage Light

Voltage: 90-240V

Specifications:

Color: orange

Material:Aluminum alloy +plastic

Voltage: 90-240,50-60HZ

Power: 310W

Light source: 7R 230W（Actual 210W）, electronic ballast

Beam angle: 6°

Color temperature: 8000-8500K

Average lamp life: 3000H

Strobe: 0-13Hz

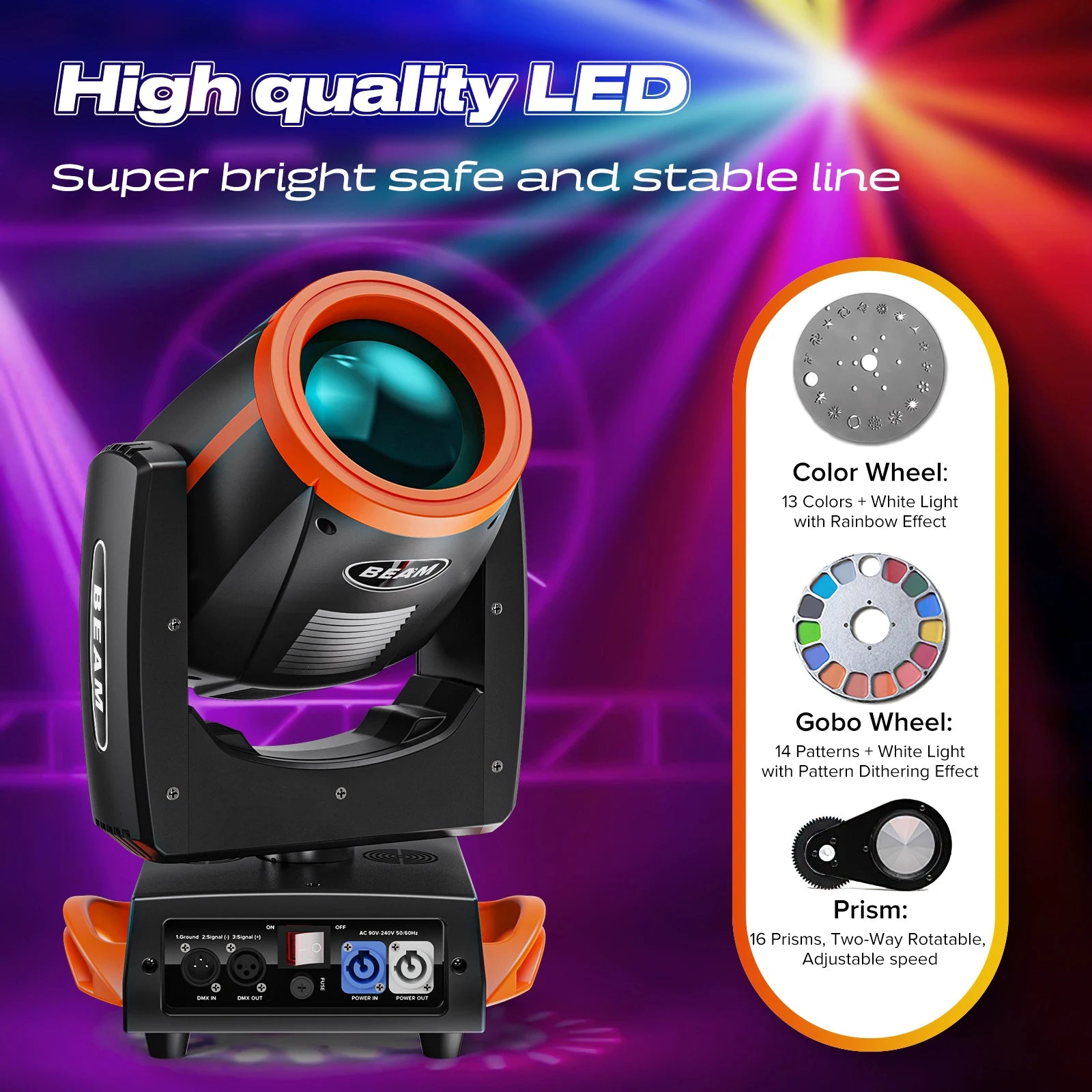

Color plate: 13 colors + 1 white light

Fixed gobo disk: 14 patterns + 1 white light

Colorful fogging: seven colors + fogging

Prism: 24 prism

X-axis: 540° precision 2.11°/step, fine adjustment precision 0.008°

Y-axis: 230 ° coarse adjustment 0.9 ° / step, fine-tuning 0.0035 degrees

Operation modes: self-propelled, voice-activated, master-slave, DMX, and

Channel: 16/20CH

Protocol: standard DMX512 protocol, RDM protocol

Dimming: 0~100%

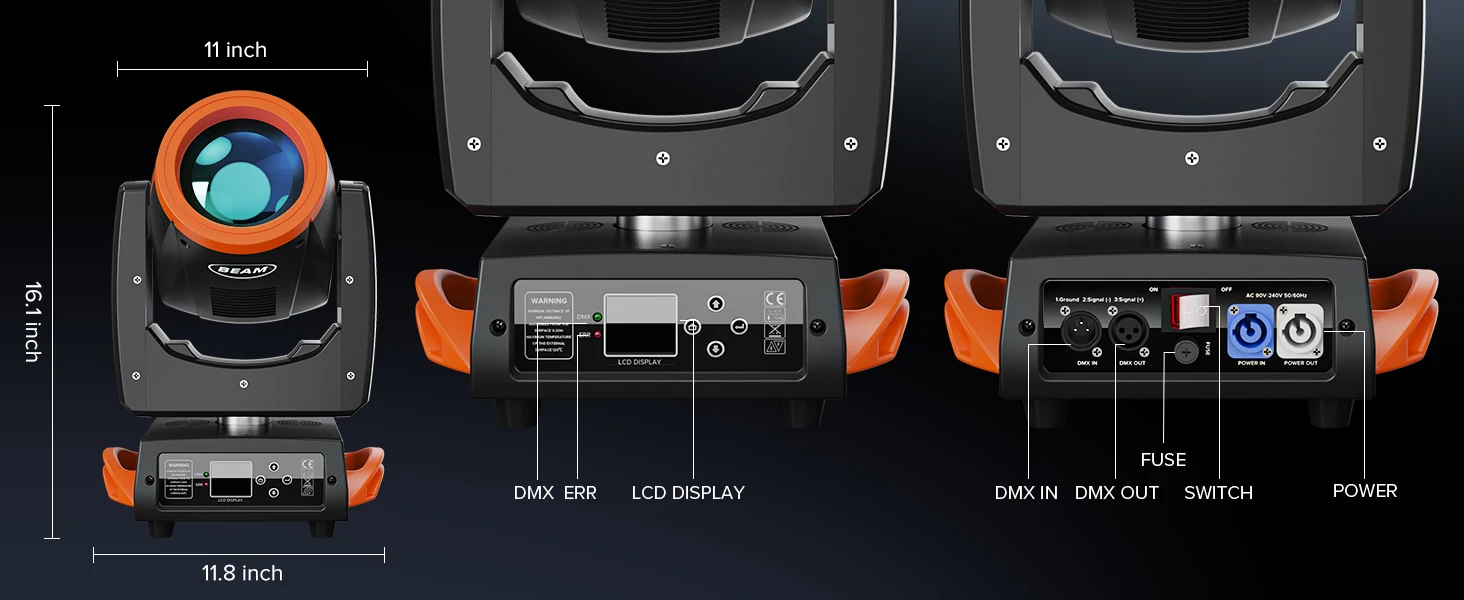

Data connection: three core XLR input/output

Display: LCD color display

Protection grade: IP20

Working environment:-20℃-40℃

Focusing: linear focus

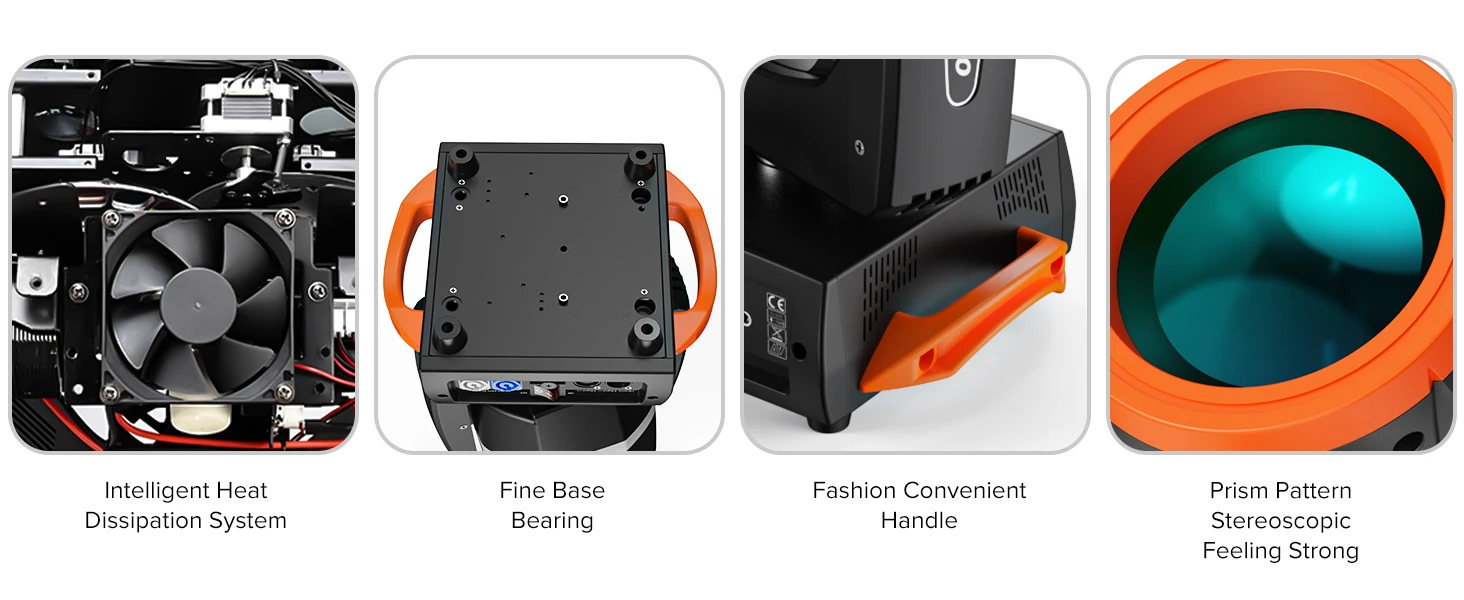

Cooling system: convection heat transfer, air-cooled

Product Features:

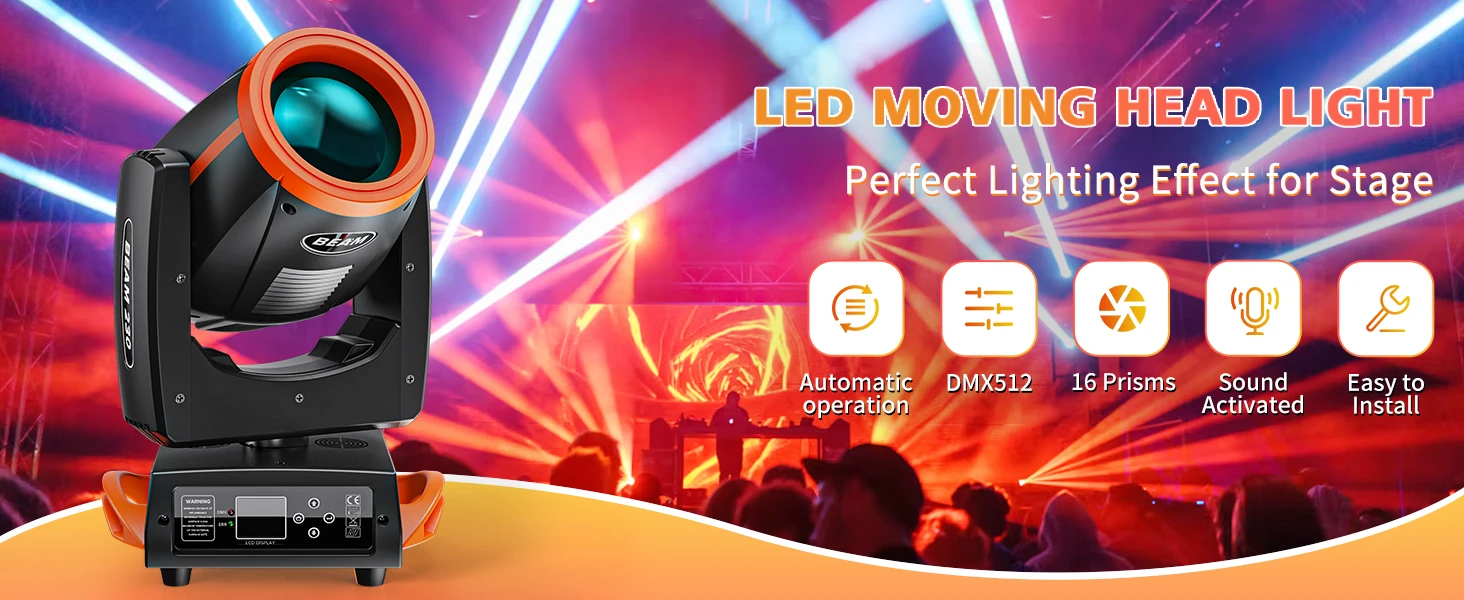

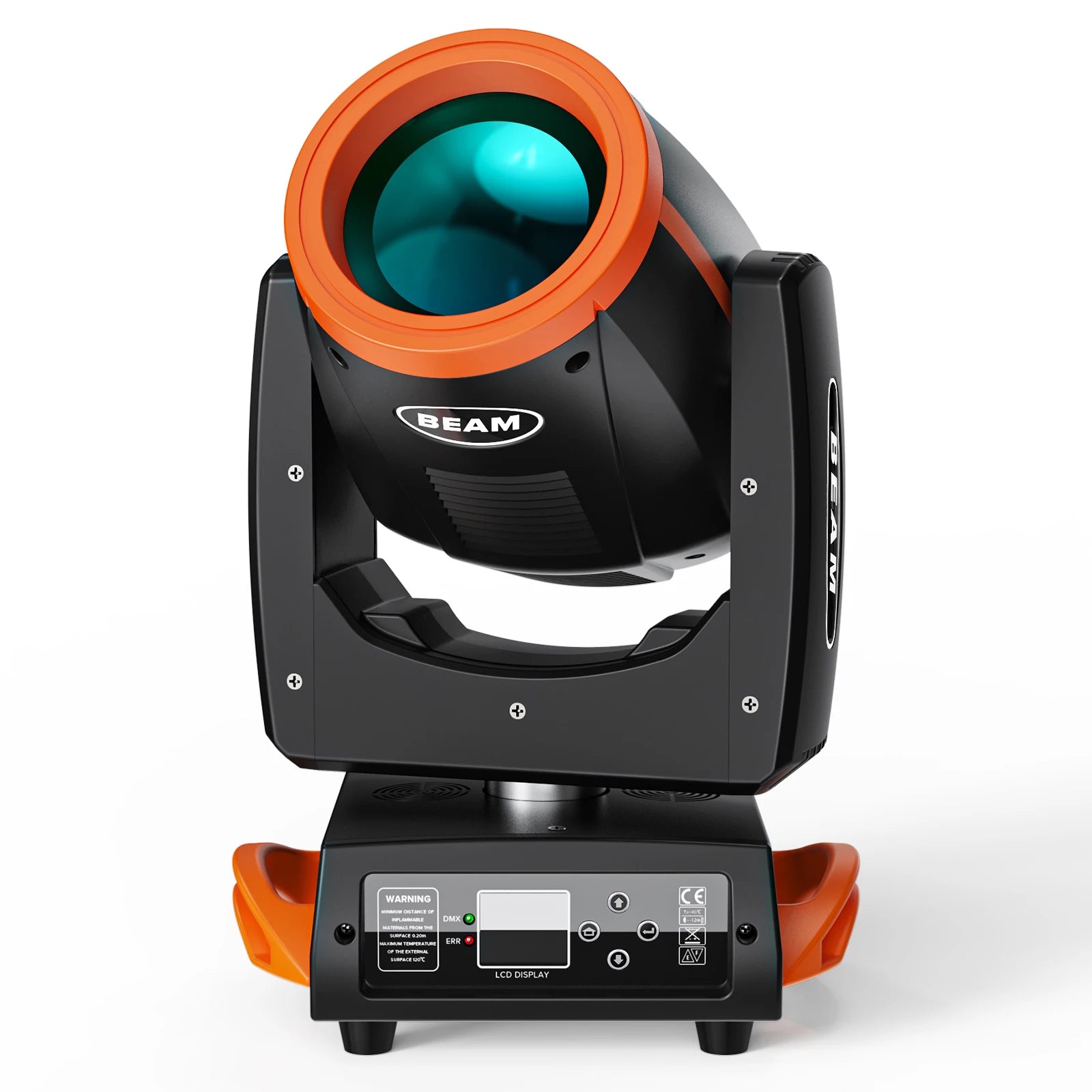

1. This moving head light adopts 1pcs 230W LED light as the light source, equipped with high precision optical lens which can maximally increase its brightness, making the beam penetration stronger and brighter.

2. Many operational modes: DMX512 signal, master/slave, sync, 16/20 DMX channels, 0-100% dimmer that offers completely smooth and even color mixing, perfect to control the stage light for different occasions.

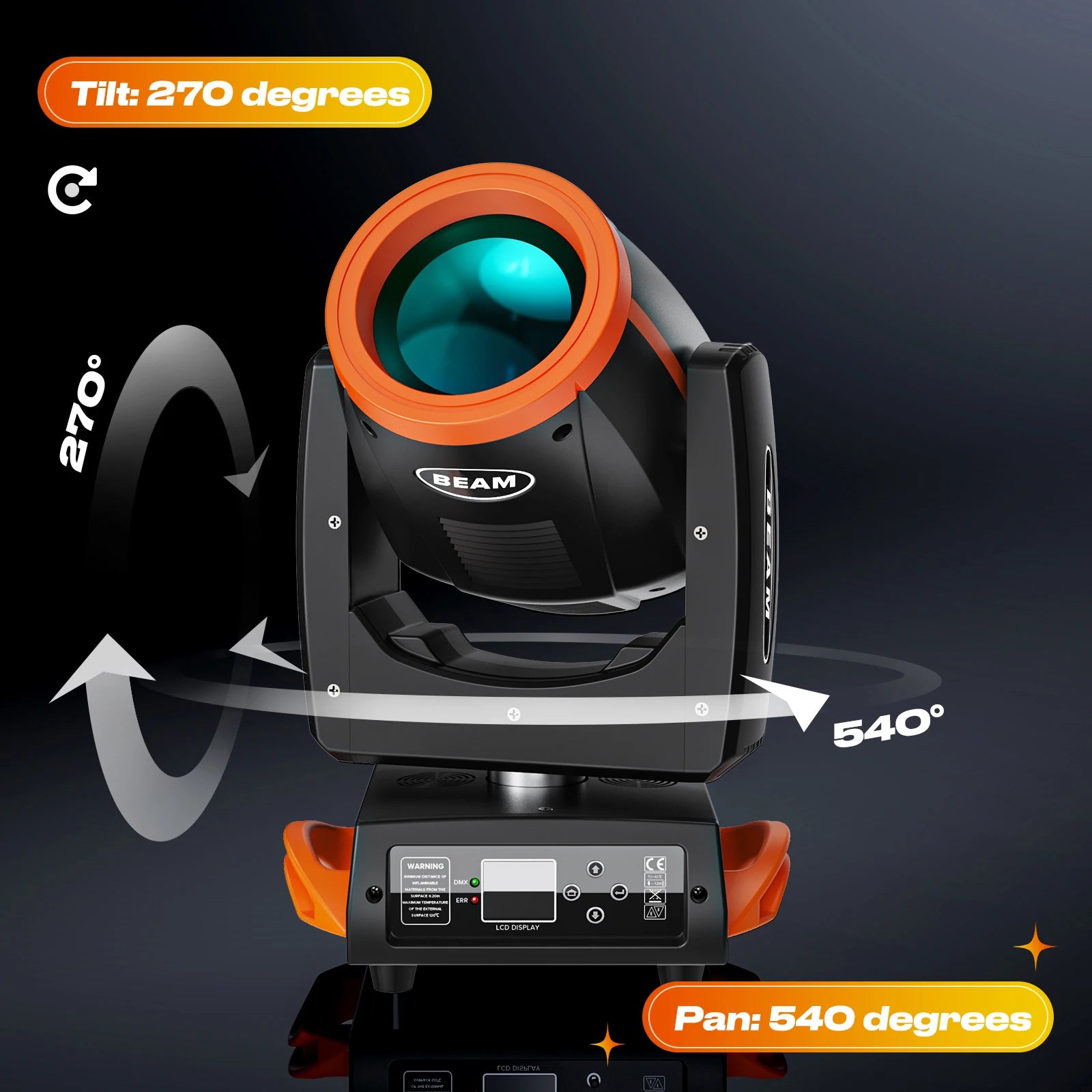

3. The scanning angle of this moving head light can be freely rotated 540° and tilted 230°, giving your stage or performance more fantastic effects.

4. Easy to install, the moving head light is made of high quality plastic housing with mounting accessories, which can be placed on a table or on the floor, or even mounted on the ceiling.

5. Widely used in many occasions, ideal for DJ, dance hall, KTV, disco, bar, theater, church, club, shopping mall, J-show, Halloween, Christmas, wedding and other indoor events.

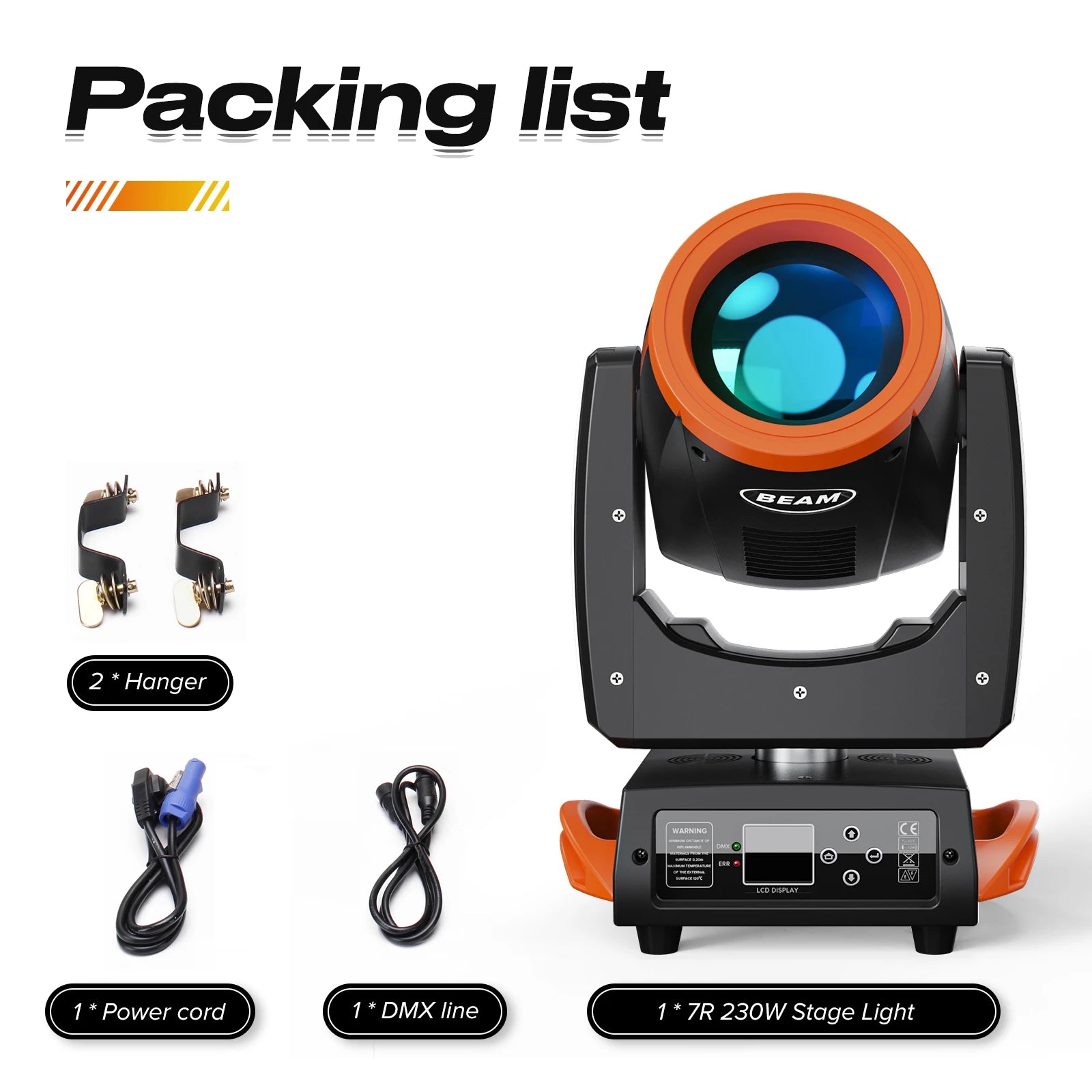

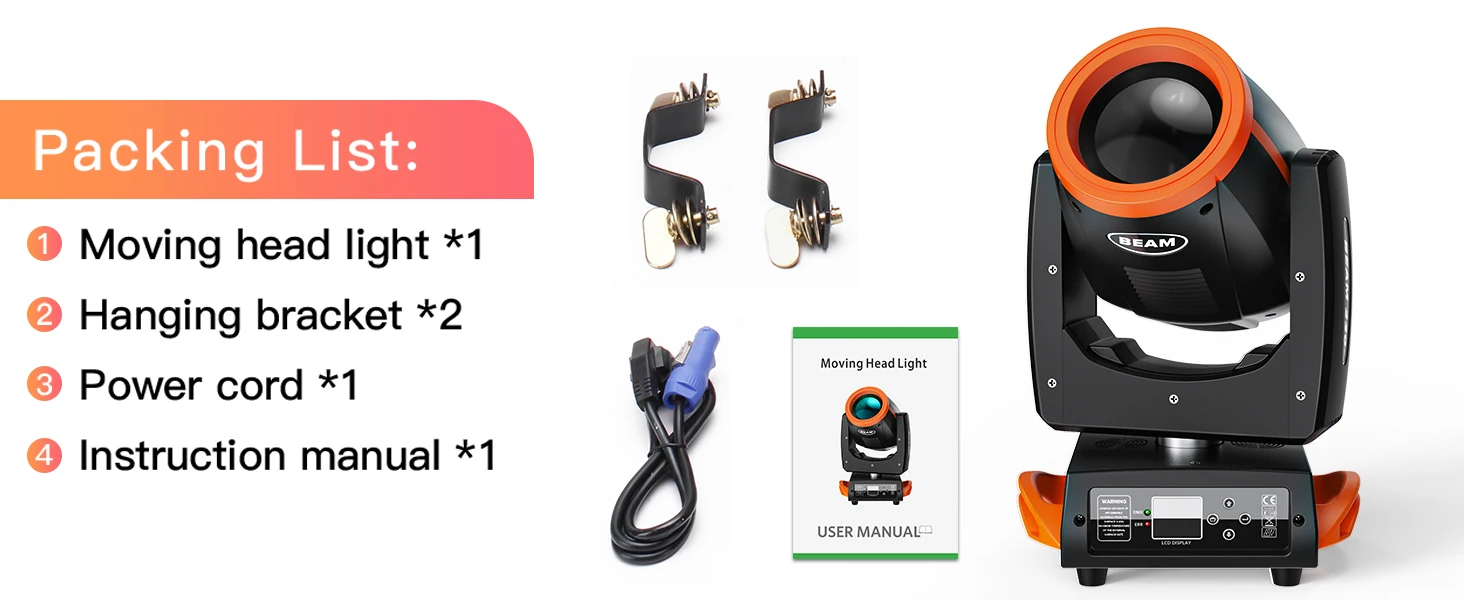

Packing List:

Moving head light *1

Hanging bracket *2

Screw *2

Power cord *1

DMX cable *1

Instruction manual *1
