SPECIFICATIONS

Brand Name: U'King

Certification: CE,FCC,RoHS

Control channel: 16CH

Hign-concerned Chemical: None

Installation Method: Self-Contained

Is Batteries Included: No

Is Bulbs Included: Yes

Item Type: Stage Lighting Effect

Light source: 230W bulb

Luminous Flux: 2000-82000

Model Number: 230W Moving Head Stage Effect Lighting

Occasion: Professional Stage & DJ

Origin: Mainland China

Power (W): 230W

Power Source: DC

Protocol: standard DMX512 protocol, RDM protocol

Style: DMX Stage Light

Voltage: 90-240V

Specifications:

Material: Aluminum alloy, sheet metal structure/plastic housing

Voltage: AC110V-240V 50/60HZ

Rated power: 270W

Light source: 230W bulb

LED light source: RGBW

Control channel: 16CH

Control mode: self-propelled, sound activated, master-slave, DMX

Protocol: standard DMX512 protocol, RDM protocol

X-axis: 540 ° 8Bit/16Bit

Y-axis: 270°8Bit/16Bit

Light angle: 3.8°

Color temperature: 7800K

Display color index: Ra ≥ 93

Illuminance: 125000Lux@10m

Strobe: 1-12HZ

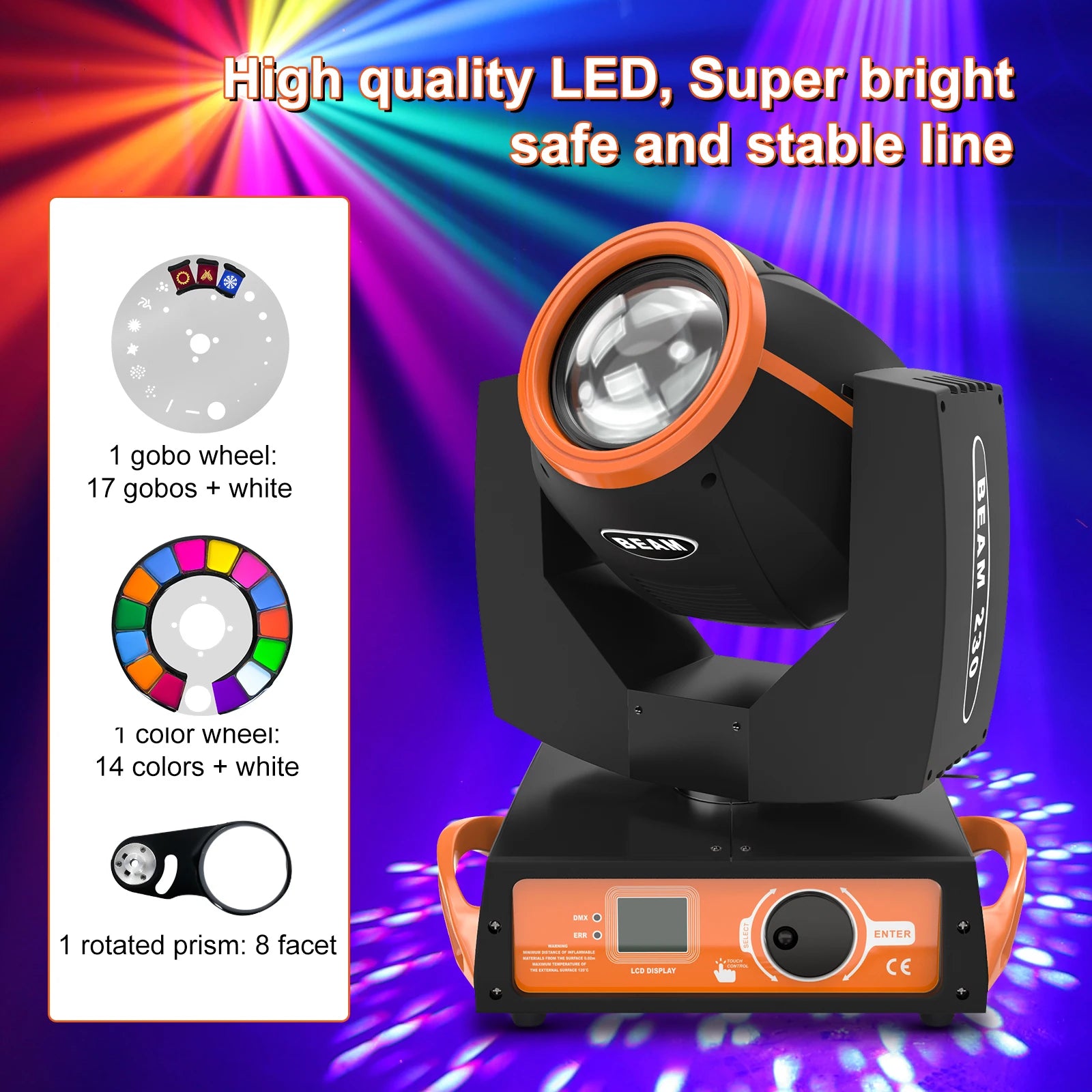

Color plate: 13 +1 color plate

Fixed gobo disk: 16+1

Colorful fog: 1 fog

Ling mirror: 24PCS prism honeycomb mirror

Data connection: three core XLR input/output

Display: LCD liquid crystal display

Protection grade: IP20

Lamp life: 1500H

Working environment:-20℃-40℃

Applicable places: used for DJ, performances, concerts, nightclubs, parties, bars, KTV, dance halls, etc., to increase the romantic atmosphere.

Product Features:

1. High Brightness and Powerful Color Effect. Smooth RGBW mixing and vivid colors + patterns, high brightness and high quality light output, create the gorgeous stage lighting effect you want.

2. Beam cleaning effect. Beam cleaning effect is used in various scenes, DJ, karaoke, dance hall, KTV, disco, bar, theater, church, club, bar, halloween, christmas, wedding, etc. Perfectly control the stage lighting for different occasions.

3. Multi-channel rich effects. 16CH, beam/pattern/prism light/color jump/strobe/dimming, 8 prisms, can be rotated in positive and negative directions, and has the function of prism positioning.

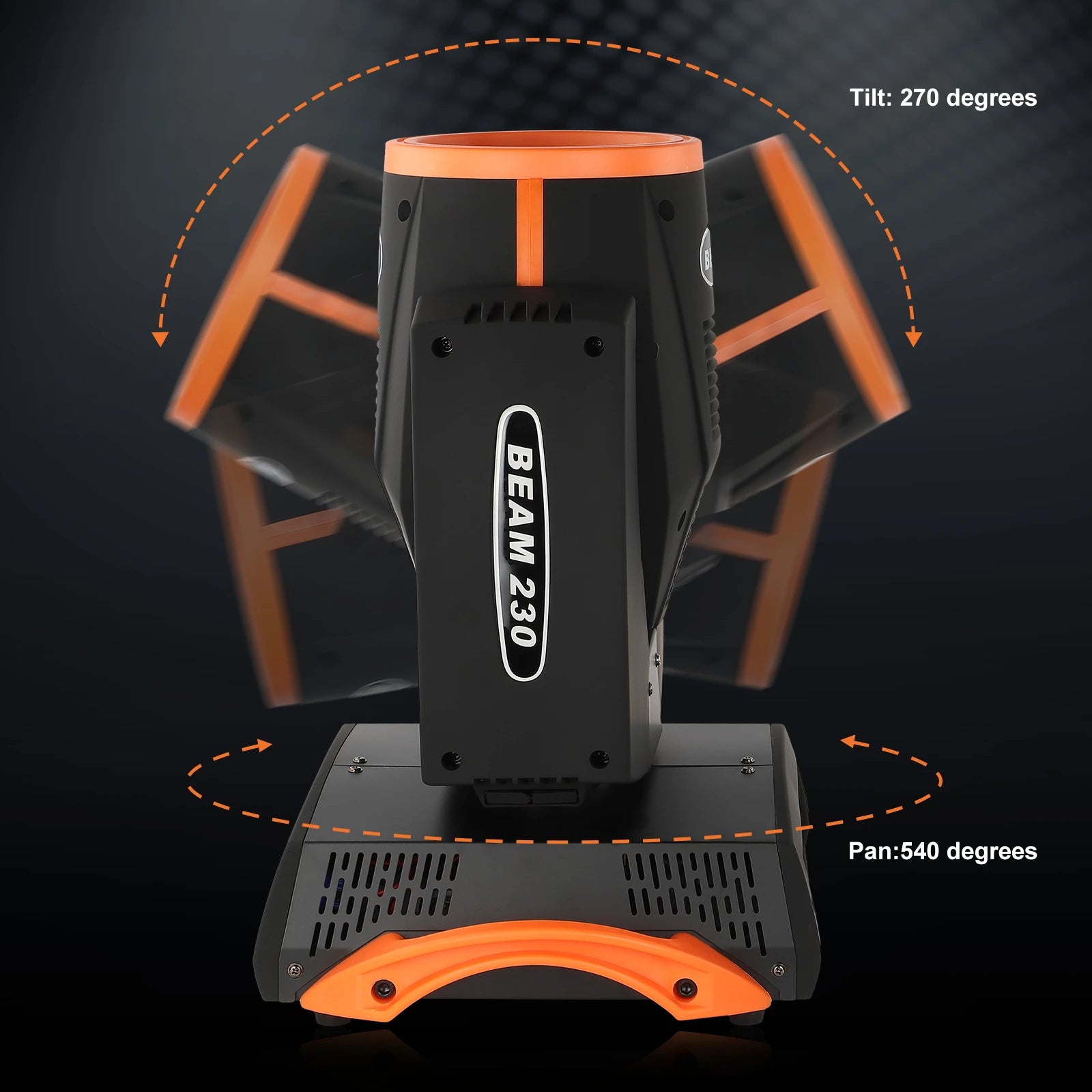

4. Multiple control modes. DMX512, automatic, sound activated, master/slave control mode. Shaking the head can achieve a large-angle pan or tilt motion. Easy to change beam direction 540°pan and 270°tilt, 1-25 times/sec random strobe.

5. High-quality material, easy to install. Made of lightweight, strong and wear-resistant aluminum. Built-in fan, accelerate heat dissipation, maintain constant temperature and prolong service life. Low noise, with dual mounting brackets, it can be hung on a truss or mounted on a wall or placed on the ground.

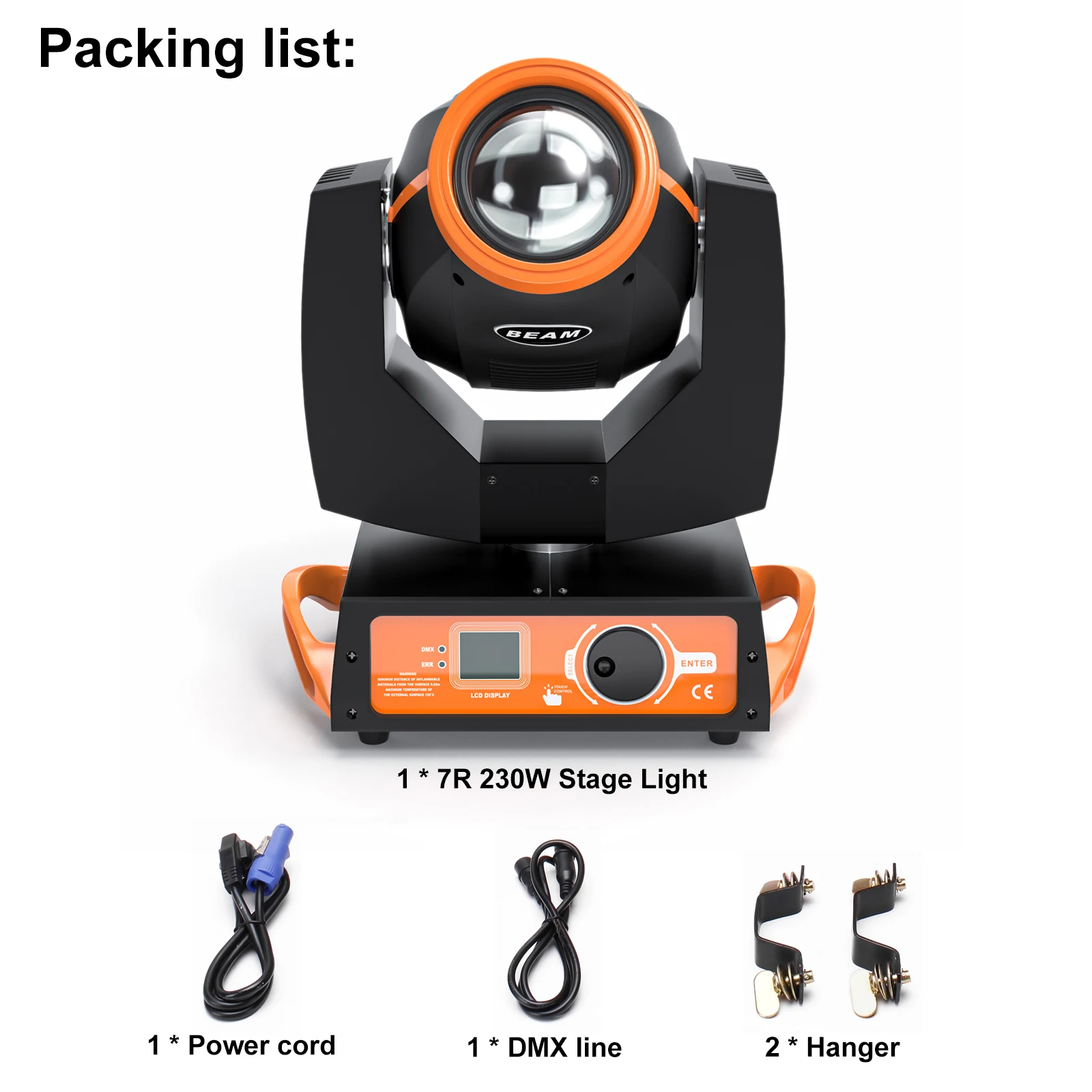

Packing List:

Stage light *1

Power cord *1

DMX cable *1

Hanger *2

User manual *1
